2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -

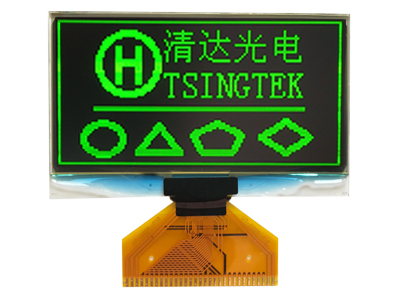

2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -

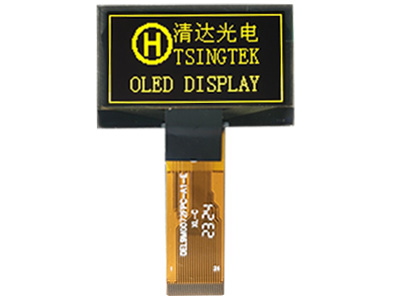

1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -

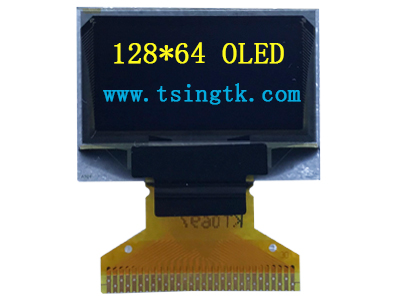

0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -

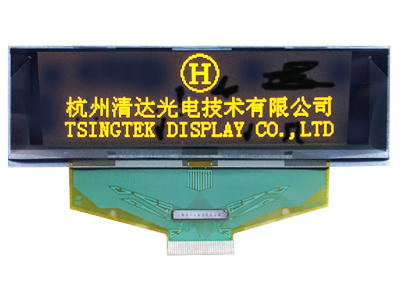

3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22
-
-
-
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22 -
3.12inch 256x64 OLED display
HGS25664A series
Resolution: 256x64
Voltage: 3.3V
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 88.0x27.8mm
Viewing area: 78.78x21.18mm
Interface: Parallel/SPI optional
Display colour: Yellow/Green/White/Blue2021-02-22 -
5.5inch 256 x64 OLED Display
HGS25664C series
Resolution: 256x64
Voltage: 3.3V
Display colour: Green
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 146.0x45.0mm
Viewing area: 137.65x35.89mm2021-02-22
-
-
-
2.23inch 128x32 OLED Display
HGS12832A series
Resolution: 128x32
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green/Blue
Operating temperature:-30 ℃~ 70 ℃
Outline dimension : 62.0x24.0mm
Viewing area: 57.02x15.1mm2021-02-23 -
2.7inch 128x64 OLED Display
HGS12864B series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1309 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 73.00x41.86mm
Viewing area: 63.41x32.69mm2021-02-22 -
1.54inch 128x64 OLED Display
HGS12864G series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Built-in SSD1305 controller
Interface: Parallel /SPI/I2C
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 45.24x29.14mm
Viewing area: 37.1x19.5mm2021-02-22 -
2.4inch 128x64 OLED Display
HGS12864H series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel /SPI/I2C
Built-in SSD1305 controller
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 60.5x37.0mm
Viewing area: 57.01x30.0mm2021-02-22 -
0.96inch 128x64 OLED Display
HGS12864K series
Resolution: 128x64
Voltage: 3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1306 controller
Operating temperature:-30 ℃~ 70 ℃
Outline dimension: 26.7x19.26mm
Viewing area: 23.7x12.9mm
Display colour:Blue/Blue-Yellow2021-02-22
-
-
PRODUCTS
OLED Display

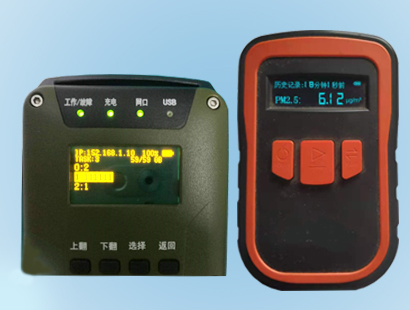

Tsingtek's OLED displays are usually made by COG,TAB and COF processes, light and thin without PCB. It is suitable for handheld products and original product development. Multiple display colors are optional for OLED,among which yellow,green,blue and white are commonly used. A variety of interfaces are available.
Product Screening
PRODUCTS
