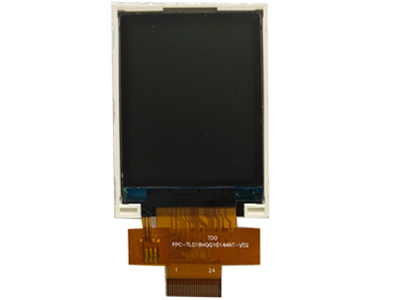

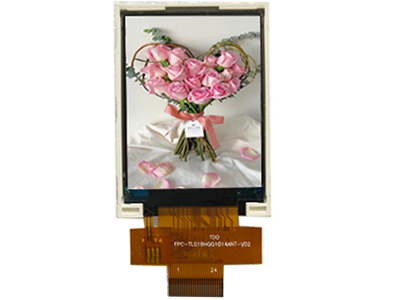

1.8" TFT LCD 128x160

HGF01801 series
Resolution: 128x160
Voltage: 2.8V
Brightness: 850cd/m²
Interface: 8-bit parallel
Built-in ILI9163 controller
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 34.7x47.0mm
Viewing area: 28.83x36.04mm
ꁲ
您的姓名\Your Name *

您的邮件地址\Your Address *

您的留言\Your Message *

Contact us

Product Recommendation

Hot Products

1.8" TFT LCD 128x160
HGF01801 series
Resolution: 128x160
Voltage: 2.8V
Brightness: 850cd/m²
Interface: 8-bit parallel
Built-in ILI9163 controller
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 34.7x47.0mm
Viewing area: 28.83x36.04mm
¥ 0.00
2.4" TFT LCD 240x320
HGF02402 series
Resolution: 240x320
Voltage: 2.8V
Brightness: 200cd/m²
Interface: MCU/SPI/RGB
Built-in ST7789 controller
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 42.7x60.2mm
Viewing area: 36.72x48.96mm
¥ 0.00
2.8" TFT LCD 240x320
HGF02807 series
Resolution: 240x320
Voltage: 2.8V
Brightness: 200cd/m²
Interface: MCU/SPI/RGB
Built-in ST7789 controller
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 50.0x69.2mm
Viewing area: 43.2x57.6mm
¥ 0.00
3.5" TFT LCD 320x240
HGF03501 series
Resolution: 320x240
Voltage: 3.3V
Touch panel optional
Brightness: 300cd/m²
Interface: 24-bit RGB
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 76.9x63.9mm
Viewing area: 72.20x54.76mm
¥ 0.00
3.5" TFT LCD 320x480
HGF03503 series
Resolution: 320x480
Voltage: 2.8V
Brightness: 250cd/m²
Touch panel optional
Built-in ST7796 controller
Interface: 18-bit RGB/SPI
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 54.4x84.7mm
Viewing area: 50.60x75.14mm

¥ 0.00
RTP 3.5"TFT LCD 320x480
HGF03503 RTP series
Resolution: 320x480
Voltage: 2.8V
Brightness: 220cd/m²
Resistive Touch Panel
Interface: 18-bit RGB/SPI
Built-in ST7796 controller
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 54.4x84.7mm
Viewing area: 50.60x75.14mm
¥ 0.00
3.5" TFT LCD 320x240
HGF03504 series
Resolution: 320x240
Voltage: 2.8V
Brightness: 300cd/m²
Interface: 24-bit RGB
Touch panel optional
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 76.4x63.4mm
Viewing area: 72.20x54.76mm
¥ 0.00
RTP 3.5" TFT LCD 320x240
HGF03504 RTP series
Resolution: 320x240
Voltage: 2.8V
Brightness: 240cd/m²
Interface: 24-bit RGB
Resistive Touch Panel
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 76.4x63.4mm
Viewing area: 72.20x54.76mm
¥ 0.00
4.3" TFT RGB 480x272
HGF04312 series
Resolution: 480x272
Voltage: 3.3V
Brightness: 200cd/m²
Interface: 24-bit RGB
Optional touch panel
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 105.4x67.1mm
Viewing area: 97.90x56.65mm
¥ 0.00
RTP 4.3" TFT LCD 480x272
HGF04312 RTP series
Resolution: 480x272
Voltage: 3.3V
Brightness: 150cd/m²
Interface: 24-bit RGB
Resistive Touch Panel
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 105.4x67.1mm
Viewing area: 97.90x56.65mm
¥ 0.00
CTP 4.3" TFT LCD 480x272
HGF04312 CTP series
Resolution: 480x272
Voltage: 3.3V
Brightness: 160cd/m²
Interface: 24-bit RGB
Capacitive Touch Panel
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 105.4x67.1mm
Viewing area: 97.90x56.65mm
¥ 0.00
5" TFT LCD 800x480
HGF05004 series
Resolution: 800x480
Voltage: 3.3V
Brightness: 400cd/m²
Interface: 24-bit RGB
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 120.7x75.8mm
Viewing area: 110.7x67.4mm
¥ 0.00
CTP 5" TFT LCD 800x480
HGF05004 CTP series
Resolution: 800x480
Voltage: 3.3V
Brightness: 400cd/m²
Interface: 24-bit RGB
Capacitive Touch Panel
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 120.7x75.8mm
Viewing area: 108.7x65.5mm
¥ 0.00
5" High Brightness IPS TFT LCD 800x480
HGF05009 series
Resolution: 800x480
Voltage: 3.3V
Brightness: 1200cd/m²
Interface: 24-bit RGB
Optional touch panel
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 120.7x75.8mm
Viewing area: 108.0x64.8mm
¥ 0.00
7" TFT Display 800x480
HGF07003 series
Resolution: 800x480
Voltage: 3.3V
Brightness: 300cd/m²
Interface: 24-bit RGB
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 164.9x99.9mm
Viewing area: 156.7x89.1mm
¥ 0.00
7" TFT LCD 800x480
HGF07003 CTP series
Resolution: 800x480
Voltage: 3.3V
Brightness: 300cd/m²
Interface: 24-bit RGB
Capacitive Touch Panel
Operating temperature:-20 ℃~ 70 ℃
Outline dimension: 164.9x99.9mm
Viewing area: 156.7x89.1mm
¥ 0.00
1.54inch 128x64 OLED Display Module
HGS128647 series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Interface: Parallel/SPI/I2C
Built-in SSD1305 controller
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 54.0x39.5mm
Viewing area: 37.0x19.5mm
¥ 0.00
2.4inch 128x64 OLED Display Module
HGS1286421V1 series
Resolution: 128x64
Voltage: 5V/3.3V
Interface: Parallel/SPI/I2C
Built-in SSD1305 controller
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 61.8x50.0mm
Viewing area: 57.5x30.0mm
Display colour: Yellow/Green
¥ 0.00
2.4inch 128x64 OLED Display Module
HGS1286425 series
Resolution: 128x64
Voltage: 3.3V
Interface: SPI
Built-in SSD1305 controller
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 61.8x50.0mm
Viewing area: 57.5x30.0mm
Display colour: Yellow/Green
¥ 0.00
1.54inch 128x64 OLED Display Module
HGS1286426 series
Resolution: 128x64
Voltage: 5V
Display colour: Yellow
Built-in SSD1305 controller
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 54.0x39.5mm
Viewing area: 37.0x19.5mm
Interface: Parallel/SPI/I2C
¥ 0.00
2.4inch 128x64 OLED Display Module
HGS1286435 series
Resolution: 128x64
Voltage: 5V/3.3V
Built-in SSD1305 controller
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 75.0x56.5mm
Viewing area: 57.5x30.0mm
Interface: Parallel/SPI/I2C
Display colour: Yellow/Green
¥ 0.00
2.4inch 128x64 OLED Display Module
HGS1286436 series
Resolution: 128x64
Voltage: 5V/3.3V
Built-in SSD1305 controller
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 75.0x56.5mm
Viewing area: 57.5x30.0mm
Interface: Parallel/SPI/I2C
Display colour: Yellow/Green
¥ 0.00
1.54inch 128x64 OLED Display Module
HGS1286437 series
Resolution: 128x64
Voltage: 3.3V
Display colour: Yellow
Interface: Parallel/SPI/I2C
Built-in SSD1305 controller
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 54.0x39.5mm
Viewing area: 37.0x19.5mm
¥ 0.00
3.37inch 240x128 OLED Display Module
HGS2401281 series
Resolution: 240x128
Voltage: 5V/3.3V
Interface: Parallel/SPI
Built-in SSD1322 controller
Operating temperature:-30 ℃~ 80 ℃
Outline dimension: 108.0x74.8mm
Viewing area: 77.58x42.30mm
Display colour: Yellow/Green
¥ 0.00
2.4inch 128x64 Smart Serial OLED Display Module
HGSC128642 series
Resolution: 128x64
Voltage: 5V/3.3V
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 61.8x50.0mm
Viewing area: 57.5x30.0mm
Interface: UART/SPI/RS232
Built-in GBK code, including Chinese, Japanese, Korean and other font libraries
¥ 0.00
1.54inch 128x64 Smart Serial OLED Display Module
HGSC128647
Resolution: 128x64
Voltage: 3.3V
Interface: UART
Display colour: Yellow
Operating temperature:-40 ℃~ 80 ℃
Outline dimension: 47.0x42.0mm
Viewing area: 37.0x19.5mm
Built-in GBK code, including Chinese, Japanese, Korean and other font libraries
¥ 0.00
0.96inch 128x64 Smart Serial OLED Display Module
HGSC1286411
Resolution: 128x64
Voltage: 5V
Size: 0.96"
Interface: UART
Operating temperature:-40 ℃~ 70 ℃
Outline dimension: 33.0x29.0mm
Viewing area: 23.74x13.20mm
Display colour:Blue/Blue-Yellow
Built-in GBK code, including Chinese, Japanese, Korean and other font libraries
¥ 0.00
3.37inch 240x128 Smart Serial OLED Display Module
HGSC2401281 series
Resolution: 240x128
Voltage: 5V/3.3V
Display colour: Yellow/Green
Operating temperature:-40 ℃~ 80 ℃
Outline dimension: 108.0x74.8mm
Viewing area: 77.58x42.3mm
Interface: UART/SPI/RS232/USB
Built-in GBK code, including Chinese, Japanese, Korean and other font libraries
¥ 0.00
